FREEDOM SERIES CNC

CNC SURFACE GRINDERS

This next generation surface grinder was developed with the same vision as our workhorse manual grinders with a focus on precision and durability. Available in three size options, this 3-axes machine utilizes a ball screw in the reciprocating axis to allow for precise stop grinding. The Freedom provides automatic dressing cycles and is ideal for precision components like die details, broaches, and other complex parts.

Specification SheetBrochure
  • Grinding Spindle
  • Table Axis
  • Power
  • Crossfeed Axis
  • CNC Control / Programming
  • ELEVATING AXIS
GRINDING SPINDLE
SPINDLE NOSE (T.I.R.)
0.00005 IN (0.0013 MM)
PS-SA00002-00
STANDARD
SPEED
5 – 6000 RPM
POWER RATING
3 HP (2.24 KW)
SERVO MOTOR DRIVEN BALLSCREW
HAND SCRAPED TURCITE COATED VEE & FLAT WAY SYSTEM
POSITIONING BY MOTOR ENCODER FEEDBACK
SERVO POWER RATING
1.81 HP (1.35 KW)
MAX. FEEDRATE
1200 IPM (30480 MM/MIN)
POWER REQUIREMENT
208, 230, OR 480 VAC – 50/60 HZ
POWER CONSUMPTION
12 KVA
TOTAL POWER RATING
14 HP (10.4 KW)
SERVO MOTOR DRIVEN BALLSCREW
PRECISION ROLLING ELEMENT LINEAR MOTION BEARING
CLOSED LOOP POSITIONING WITH HEIDENHAIN GLASS SCALE FEEDBACK
SERVO POWER RATING
1.81 HP (1.35 KW)
SIEMENS SINUMERIK 840D SL
INPUT FORMAT
ETHERNET OR USB
POSITION COMMAND
INCREMENTAL AND ABSOLUTE
PROGRAMMING FORMAT
INCH OR METRIC
MINIMUM PROGRAM INCREMENT
0.00001 IN (0.0001 MM)
HANDWHEEL CONTROL
REMOTE HANDHELD PENDANT
SERVO MOTOR DRIVEN BALLSCREW WITH BRAKE
SPRECISION ROLLING ELEMENT LINEAR MOTION BEARINGS
CLOSED LOOP POSITIONING WITH HEIDENHAIN GLASS SCALE FEEDBACK
SERVO POWER RATING
1.81 HP (1.35 KW)
FREEDOM SERIES CNC

The benefits built into every one of our CNC Grinding Machines

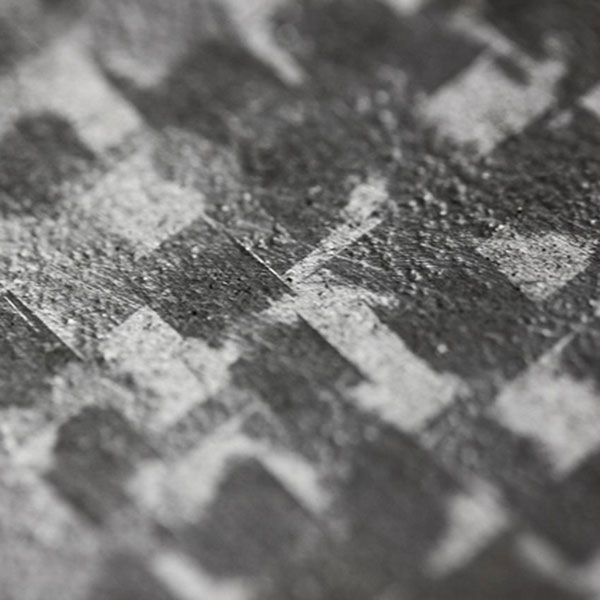

Hand Scraped Ways

Hand Scraped Ways

The human touch in a high precision machine. Hand scraping provides a more accurate surface for more accurate part production.

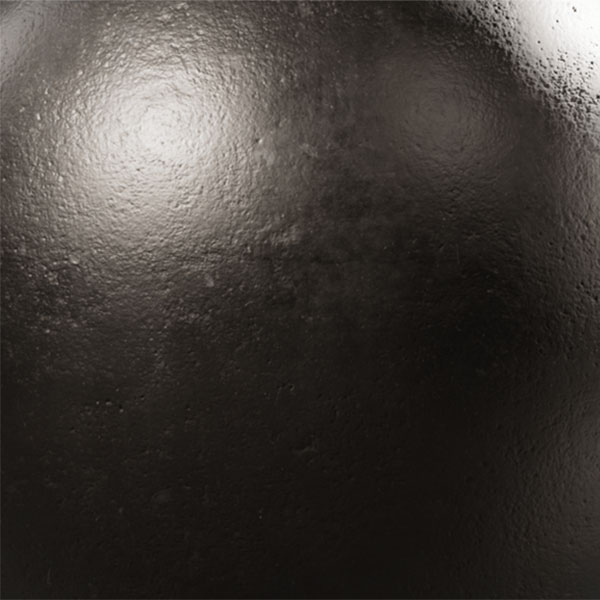

Cast Iron Bases

Cast Iron Bases

All of our cnc grinding machines utilize cast iron bases due to its high compressive strength and excellent vibration damping capacity.
Preprogrammed Cycles

Preprogrammed Cycles

Simplify the programming process by automating repetitive tasks such as drilling, boring, threading, and pocketing​.

REQUEST QUOTE

Review and Select Your Options
Machines must pass rigorous test grinding and verification to .00005” (.00127mm) or less
