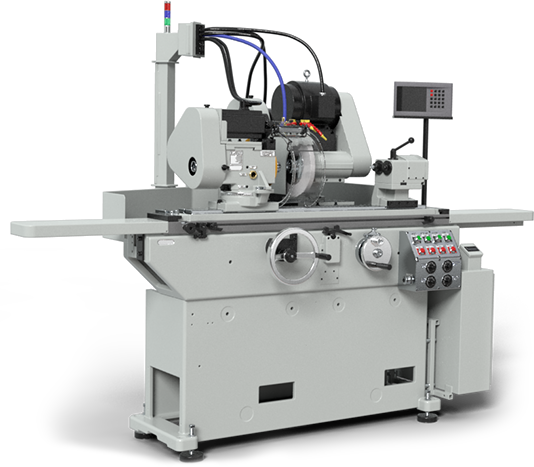

14×30 MANUAL

ID/OD CYLINDRICAL GRINDER

Our 14×30 manual cylindrical grinder is an established, proven grinding system. For parts up to 30”, this durable machine provides the stability and repeatability needed to produce your high precision components.

Specification SheetBrochure
  • GENERAL SPECIFICATIONS
  • Table Axis
  • Power
  • Crossfeed Axis
  • Workhead Spindle
GENERAL SPECIFICATIONS
OVERALL DIMENSIONS (W x D x H)
104 IN X 41 IN X 46 IN
MACHINE WEIGHT (NET)
5200 LBS (2358 KG)
MAX PART DIAMETER
14 IN (355.6 MM)
DISTANCE BETWEEN CENTERS
28 IN (711.2 MM)
WORKTABLE SIZE
5 IN X 50 IN (127 MM X 1270 MM)
TABLE SWIVEL
7 DEGREES
MANUAL AND VARIABLE SPEED ELECTRIC TABLE DRIVE
HAND SCRAPED TURCITE COATED VEE & FLAT WAY SYSTEM
TOTAL TRAVEL
30 IN (762 MM)
TABLE FEED MOTOR
3/4 HP @ 1,750/400 RPM
TABLE SWIVEL
7 DEGREES
POWER REQUIREMENT
230, OR 480 VAC – 50/60 HZ
POWER CONSUMPTION
6 KVA
MAX. CURRENT
30 A
TOTAL POWER RATING
10 HP (7.5 KW)
MANUAL DRIVEN BALLSCREW
PRECISION ROLLING ELEMENT LINEAR MOTION BEARING
CLOSED LOOP POSITIONING WITH HEIDENHAIN GLASS SCALE FEEDBACK
TOTAL TRAVEL
7 IN (177.8 MM)
SPEED
0-1000 RPM
SPINDLE NOSE
PARKER TAPER – ACCEPTS 5C COLLETS
DRIVE MOTOR
1 HP@1,750/200 RPM
MANUALLY PIVOTING WORKHEAD (B-AXIS) – ACCURACY 0.0005 DEGREES
14/30 CNC

The benefits built into every one of our CNC Grinding Machines

Hand Scraped Ways

Hand Scraped Ways

The human touch in a high precision machine. Hand scraping provides a more accurate surface for more accurate part production.
Cast Iron Bases

Cast Iron Bases

All of our cnc grinding machines utilize cast iron bases due to its high compressive strength and excellent vibration damping capacity.
Preprogrammed Cycles

Preprogrammed Cycles

Simplify the programming process by automating repetitive tasks such as drilling, boring, threading, and pocketing​.

REQUEST QUOTE

Review and Select Your Options
Machines must pass rigorous test grinding and verification to .00005” (.00127mm) or less

GRINDING SPINDLES
SPINDLE NOSE (T.I.R.) 0.00005 IN (0.0013 MM)
